Standalone converter

NDI®

DELTA-neo is DELTACAST new product line dedicated to tackle format conversions in heterogeneous production environments.

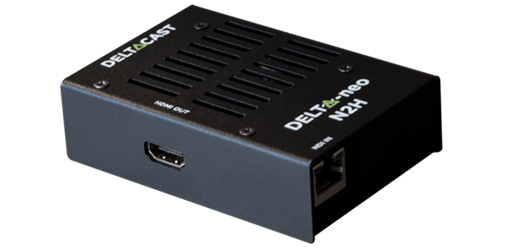

DELTA-neo N2H fills an important gap for all video content viewing applications across the NDI® ecosystem. It allows you to decode and visualize any NDI® stream on a wide range of HDMI™ 2.0 displays devices, TV screens and video projectors.

DELTA-neo N2H automatically detects the NDI® stream format, decode and converts it to HDMI™ with embedded audio. As opposed to the computer-based system, its hardware-based signal processing delivers stability, low latency and a small form factor (VESA compatible) not previously met on the market.

The DELTA-neo N2H has been designed to make your life easier and facilitate the integration of NDI® IP technology in numerous video monitoring workflows of many markets

  • - Corporate multimedia content distribution
  • - Digital signage head-end display
  • - Confidence and quality control monitoring
  • - TV Production distribution monitoring
  • - Stage and event content distribution
  • - Stadium and arenas display

Key advantages:

  • - Straightforward installation and operation to spend less time configuring a computer based system.
  • - Hardware-based for more stable, allows stress less operation.
  • - Native official Newtek SDK-based development ensuring support for NDI-based technology provider and access to last generation SDK and updates.
  • - Ultra-small form factor (VESA compatible) which takes low footprint in physical infrastructure.
  • - Rugged metallic enclosure that support harsh environments and rough handling.
  • - Power over Ethernet (PoE) adapter to limited connectivity requirements and easy deployment.
  • - HTML5 Web user interface offering centralized management capabilities.
  • - NDI stream selection thru local switch and web user interface enabling direct access wherever the operation takes.
  • - Automatic NDI streams detection without the need to edit any NDI streams.
  • - Audio pair selection from embedded NDI® audio stream to be use in multilingual environments or dedicated audio workflows.
  • - Automatic power-on & non-volatile configuration ensuring continuous operation without human intervention after power breakdown.
  • - Static or dynamic network identification to adapt to any network IT policies.
  • - All formats supported up to 1080p60 and automatic switch between standards.

Specifications

Technical specicfications
Hardware 1x 1Gbps Ethernet, RJ45 (1000BASE-T) network interface
1x HDMI 2.0 output connector (Type A)
Passive cooling, no fan
100-240V, 50/60 Hz Universal DC Input

VESA mount (100mmx100mm) fixing
Dimensions : 90x80x30 mm
Weight : 227g

PoE to DC power adapter
USB A to DC power cable adapter
Video formats SD : NTSC 480i59.97, PAL 576i50
HD : 720p 50/59.94/60
HD : 1080i 50/59.94/60
HD : 1080p 25/29.97/50/59.94/60
Audio formats Input: Up to 8x embedded pairs per NDI® stream
Output: 2-channel, 24-bit, 48 kHz, synchronous
Output sync offset management
NDI® interface NDI® video stream live receiving (TCP) and decoding
NDI® zero configuration discovery (mDNS, multicast) and registration
Automatic source detection
HDMI™ interface HDMI™ uncompressed output
Embedded audio support
Unprotected HDCP output
Features
Features Automatic power-on
Non-volatile configuration
Dedicated factory restore button
Web user interface for remote configuration
Web user interface features NDI® Channel selection
Network configuration
Status monitoring
HDMI™ Interface control
Firmware management
HTML5 supporting latest generation web browser
